Linear 90 Direct
Pendant

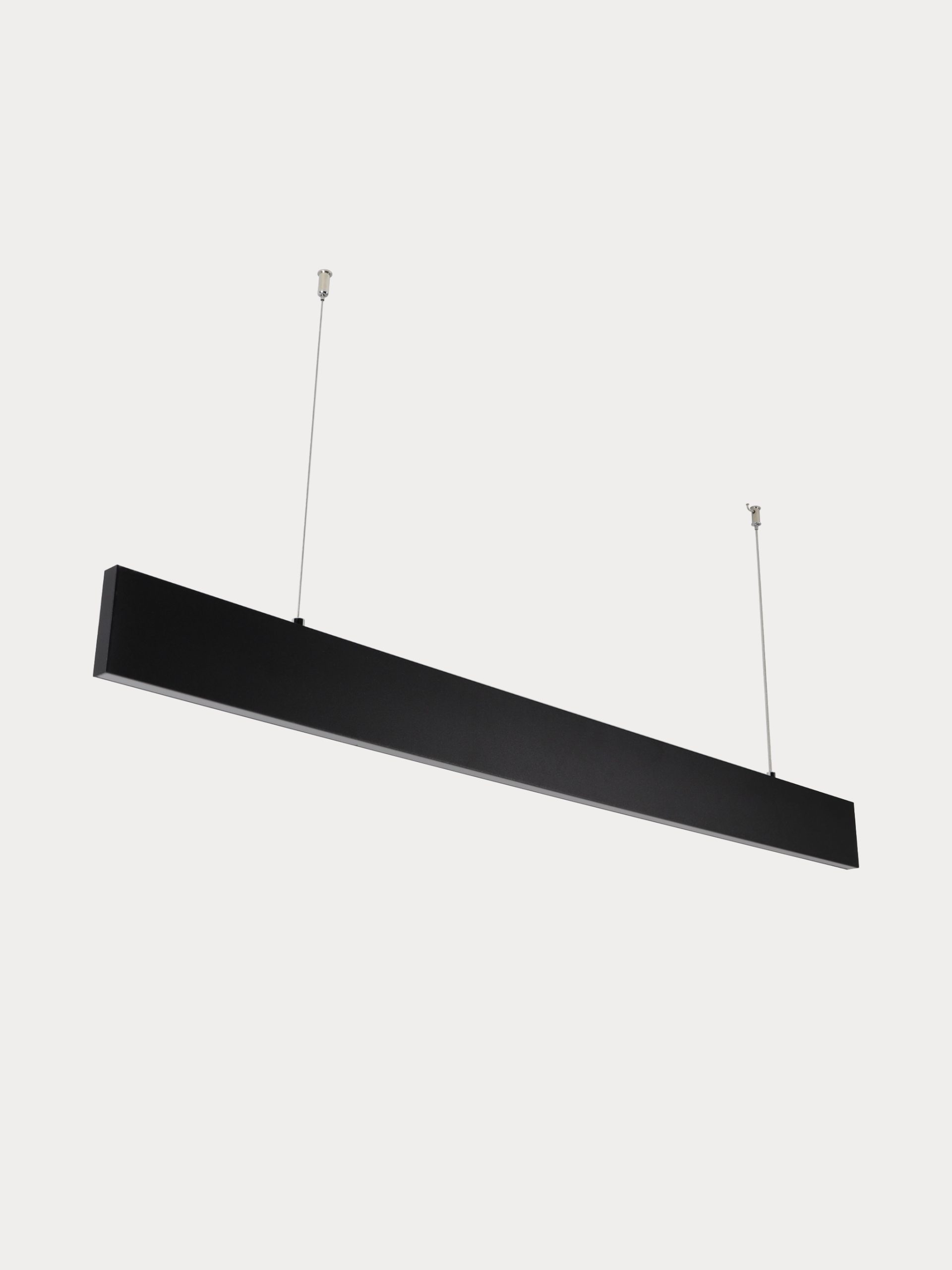

Linear 90 Direct Pendant Light – Suspended Linear LED Light
The Linear 90 Direct pendant light is a suspended linear LED light designed for commercial and residential applications. The system allows full customisation of length, light output, and finish. It uses 2-in-1 powered suspension, removing the need for a separate power cable, and includes screwless end caps for a clean installation.
The Linear 90 Direct supports direct or up & down light output and suits offices, education spaces, and commercial interiors using architectural linear lighting. We manufacture the fitting using European LED components, with dimming available as standard and coverage under a 5-year warranty.
Download the Linear 90 data sheet for specifications and technical details.
Product Details
Features
- Linear 90 Direct pendant light with slimline profile
- Australian made using premium materials
- 2-in-1 powered suspension (no separate power cable)
- Screwless end caps for clean architectural installation
- Customisable lengths, output, and finishes (six stocked finishes or Dulux Powders range)
- Direct or up & down light output
- Suspended installation
- Supports L, T, X, and straight joins for continuous configurations
- Uses European LED components for reliable, long-lasting performance
- Dimming available as standard
- Covered by a 5-year warranty
- Supports architectural linear lighting designs in commercial and residential spaces
Download the Linear 90 data sheet for full technical specifications and installation details.
Length
The Linear 90 Direct is available in continuous lengths up to 3000mm then a junction/join is required.
- 1200mm (120)
- 1500mm (150)
- 1800mm (180)
- 2000mm (200)
- 2400mm (240)
- 2700mm (270)
- 3000mm (300)
Any length up to 3 meters can be manufactured in 50mm increments.
Finish
The Linear 90 Direct is stocked in the following finishes (scroll down the page to view finish images):
- Texture Black (TB)
- Texture White (TW)
- Texture Silver (TS)
- Gold Pearl (GP)
- Brushed Brass (BB - only up to 2.1m length)
- Copper Bronze (CB)
- Dark Bronze (DB)
Custom finishes are available - Specify from Dulux Powders or Oxytech
Output
Linear 90 Direct is available with the following lumen packages;
- 14 Watts / Meter = 1800 Lumens / Meter (Standard Output - SO)
- 20 Watts / Meter = 2500 Lumens / Meter (High Output - HO)
CCT
CCT must be selected before purchasing (is not changable):
- 3000K Warm White (3K) (Stocked)
- 4000K Cool White (4K) (Stocked)
- Tunable White (10 + units)
Mounting
- Bullets (M1)
- Canopies (M2)
- Rods (M3)
- Centre Canopy (M4)
- Side Canopy (M5)
- Surface Mount (M6)
Canopy Options (For M2)
- Recessed 38mm (R38)
- Recessed 70mm (R70)
- Surface 70mm (S70)
- Surface 100mm (S100)
Dimming
- Phase Cut (PC) Included in all pricing
- SwitchDIM (SwD)
- DALI (DA)
- Casambi (CAS)
Trade Pricing
Looking to specify the Linear 90 Direct into a project? Contact us on 1300 887 948 or sales@contessalighting.com.au for trade pricing.
- Linear 90 Direct pendant light with slimline profile
- Australian made using premium materials
- 2-in-1 powered suspension (no separate power cable)
- Screwless end caps for clean architectural installation
- Customisable lengths, output, and finishes (six stocked finishes or Dulux Powders range)
- Direct or up & down light output
- Suspended installation
- Supports L, T, X, and straight joins for continuous configurations
- Uses European LED components for reliable, long-lasting performance
- Dimming available as standard
- Covered by a 5-year warranty
- Supports architectural linear lighting designs in commercial and residential spaces
Download the Linear 90 data sheet for full technical specifications and installation details.
Finish Options
Click to zoom
Texture Black (PC)
Texture White (PC)
Texture Silver (PC)
Brushed Brass (PF)
Gold Pearl (PC)
Copper Bronze (PC)
Dark Bronze (PC)
