Linear 90 Direct/Indirect
Pendant

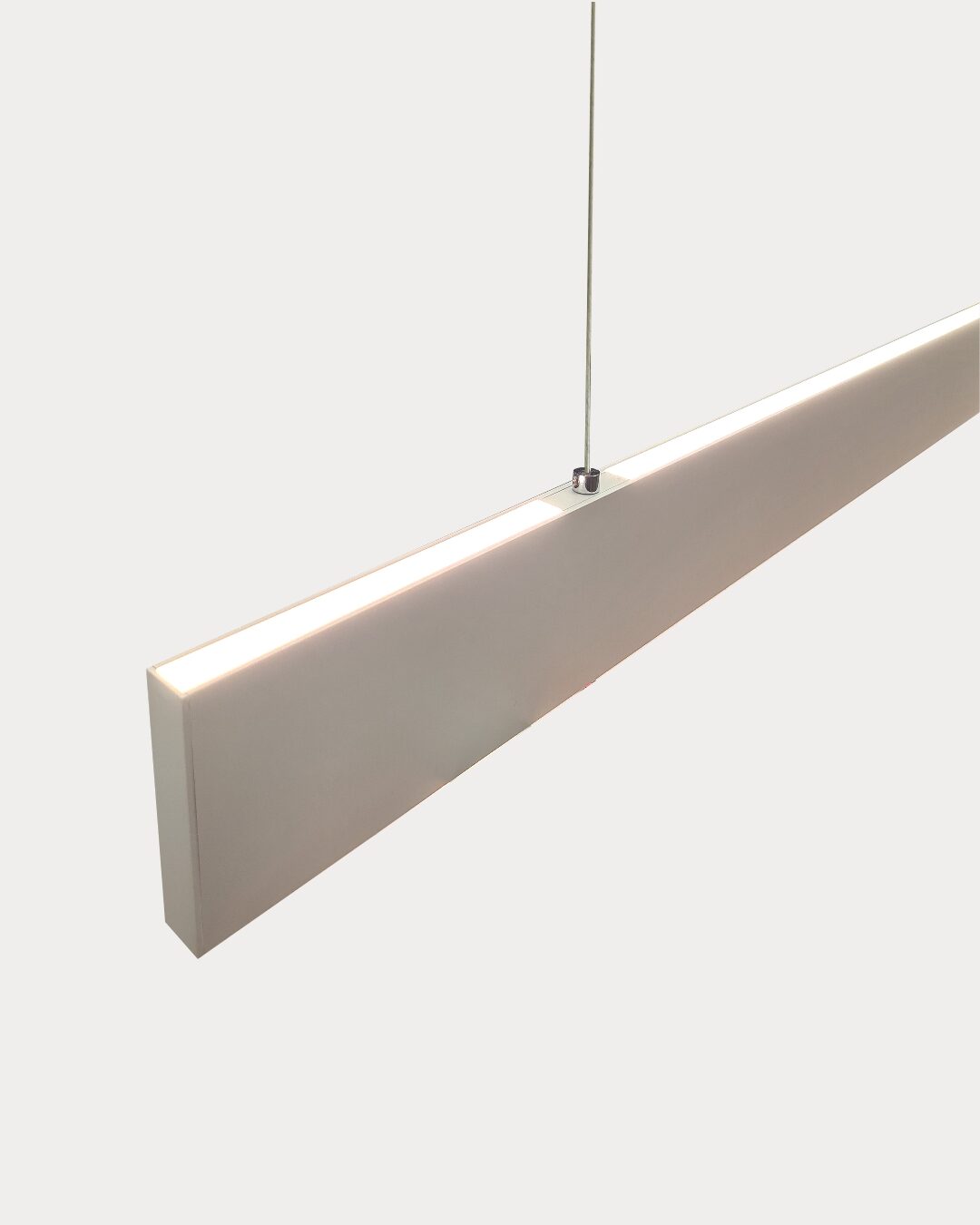

Linear 90 Direct & Indirect Light – Architectural Linear LED Lighting
The Linear 90 Direct & Indirect pendant is an Australian-made linear pendant light providing direct and indirect illumination. It features 2-in-1 powered suspension (no extra power cable), screwless end caps, and supports straight joins for continuous configurations. Choose from six stocked finishes or a custom finish from the Dulux Powders range.
Manufactured with European components, it includes dimming as standard and is covered by a 5-year warranty.
See the Linear 90 Direct for down only output.
Download the data sheet for full specifications and technical details.
Product Details
Features
-
- Linear 90 Direct and indirect pendant light with slimline profile
- Australian made using premium materials
- 2-in-1 powered suspension (no separate power cable)
- Screwless end caps for clean architectural installation
- Customisable lengths, output, and finishes (six stocked finishes or Dulux Powders range)
- Direct or up & down light output
- Suspended installation
- Supports L, T, X, and straight joins for continuous configurations
- Uses European LED components for reliable, long-lasting performance
- Dimming available as standard
- Covered by a 5-year warranty
- Supports architectural linear lighting designs in commercial and residential spaces
Download the Linear 90 data sheet for full technical specifications and installation details.
Length
-
The Linear 90 Direct & Indirect is available in continuous lengths up to 3000mm then a junction/join is required.
- 1200mm (120)
- 1500mm (150)
- 1800mm (180)
- 2000mm (200)
- 2400mm (240)
- 2700mm (270)
- 3000mm (300)
Any length up to 3 meters can be manufactured in 50mm increments.
Finish
The Linear 90 Direct is stocked in the following finishes (scroll down the page to view finish images):
- Texture Black (TB)
- Texture White (TW)
- Texture Silver (TS)
- Gold Pearl (GP)
- Brushed Brass (BB - only up to 2.1m length)
- Copper Bronze (CB)
- Dark Bronze (DB)
Custom finishes are available - Specify from Dulux Powders or Oxytech
Output
Linear 90 Direct & Indirect is available with the following lumen packages;
- 2 x 14 Watts / Meter = 1800 Lumens / Meter Direct & Indirect (Standard Output - SO)
- 1 x 20 Watts / Meter = 2500 Lumens / Meter Direct + 1 x 14 Watts / Meter = 1800 Lumens / Meter Indirect(High Output - HO)
CCT
CCT must be selected before purchasing (is not changable):
- 3000K Warm White (3K) (Stocked)
- 4000K Cool White (4K) (Stocked)
- Tunable White (10 + units)
Mounting
- Bullets (M1)
- Canopies (M2)
- Rods (M3)
- Centre Canopy (M4)
- Side Canopy (M5)
- Surface Mount (M6)
Canopy Options (For M2)
- Recessed 38mm (R38)
- Recessed 70mm (R70)
- Surface 70mm (S70)
- Surface 100mm (S100)
Note, on the longer 2700mm + lengths, both suspension cables are powered.
Dimming
- Phase Cut (PC) Included in all pricing
- SwitchDIM (SwD)
- DALI (DA)
- Casambi (CAS)
Trade Pricing
Looking to specify the Linear 90 Direct & Indirect into a project? Contact us on 1300 887 948 or f="mailto:sales@contessalighting.com.au">sales@contessalighting.com.au for trade pricing.
-
- Linear 90 Direct and indirect pendant light with slimline profile
- Australian made using premium materials
- 2-in-1 powered suspension (no separate power cable)
- Screwless end caps for clean architectural installation
- Customisable lengths, output, and finishes (six stocked finishes or Dulux Powders range)
- Direct or up & down light output
- Suspended installation
- Supports L, T, X, and straight joins for continuous configurations
- Uses European LED components for reliable, long-lasting performance
- Dimming available as standard
- Covered by a 5-year warranty
- Supports architectural linear lighting designs in commercial and residential spaces
Download the Linear 90 data sheet for full technical specifications and installation details.
Finish Options
Click to zoom
Texture Black (PC)
Texture White (PC)
Texture Silver (PC)
Brushed Brass (PF)
Gold Pearl (PC)
Copper Bronze (PC)
Dark Bronze (PC)
